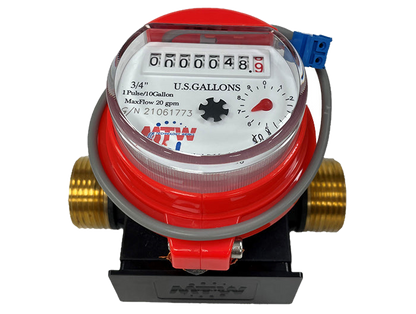

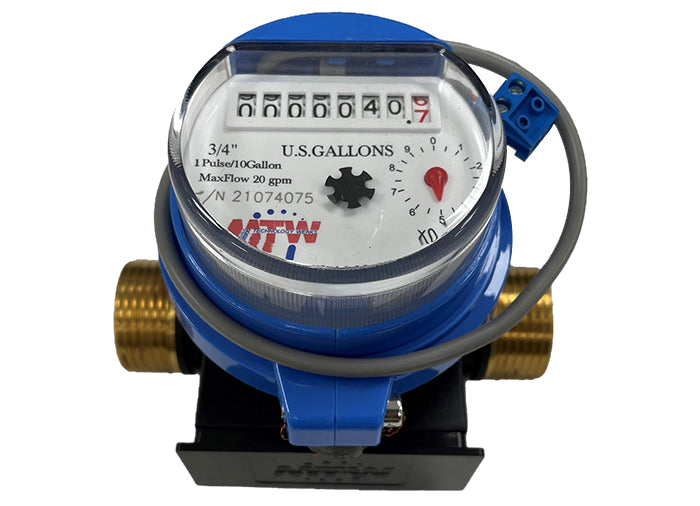

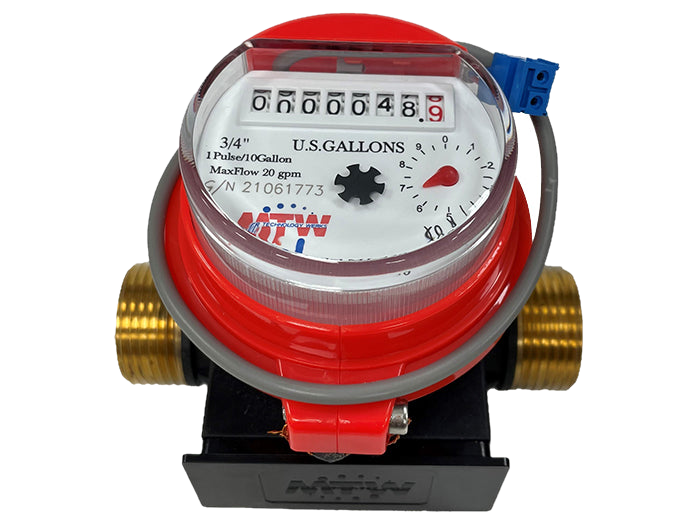

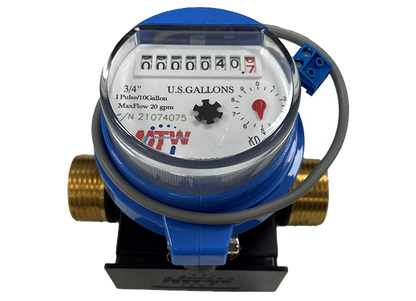

MTW Multi-Jet Poly Cold Water Meter MJ20 SHORT

Features

• Poly body with brass threads
• Pulse output 1/1 gal or 1/10 gal
• Sealed register for tamper resistance
• Meets AWWA C708 performance
• NSF 61/G listed and marked
• Quiet operation
• 1-year new meter accuracy warranty
• 5-year standard warranty for body, register, and accuracy (AWWA C708)

Specifications

• Operating capacity (20 gpm)
• Max rate for continuous duty (15 gpm)
• Max pressure loss at max flow (10.9 psi)
• Normal flow range (+/- 1.5%) (1-20 gpm)
• Minimum flow (+/- 3%) (1/4 gpm)
• Max working pressure (150 psi)
• Max working temperature (Cold; MJ20S) (105° F)
• Max working temperature (Hot; MJ420S) (194° F)
• Meter casing spuds, nominal thread size (1″)
• Nominal pipe size (3/4″)
• Weight (0.9 lbs.)
• Materials – main case (Glass-reinforced Nylon)
• HOT WATER Rated for temperatures over 140F
