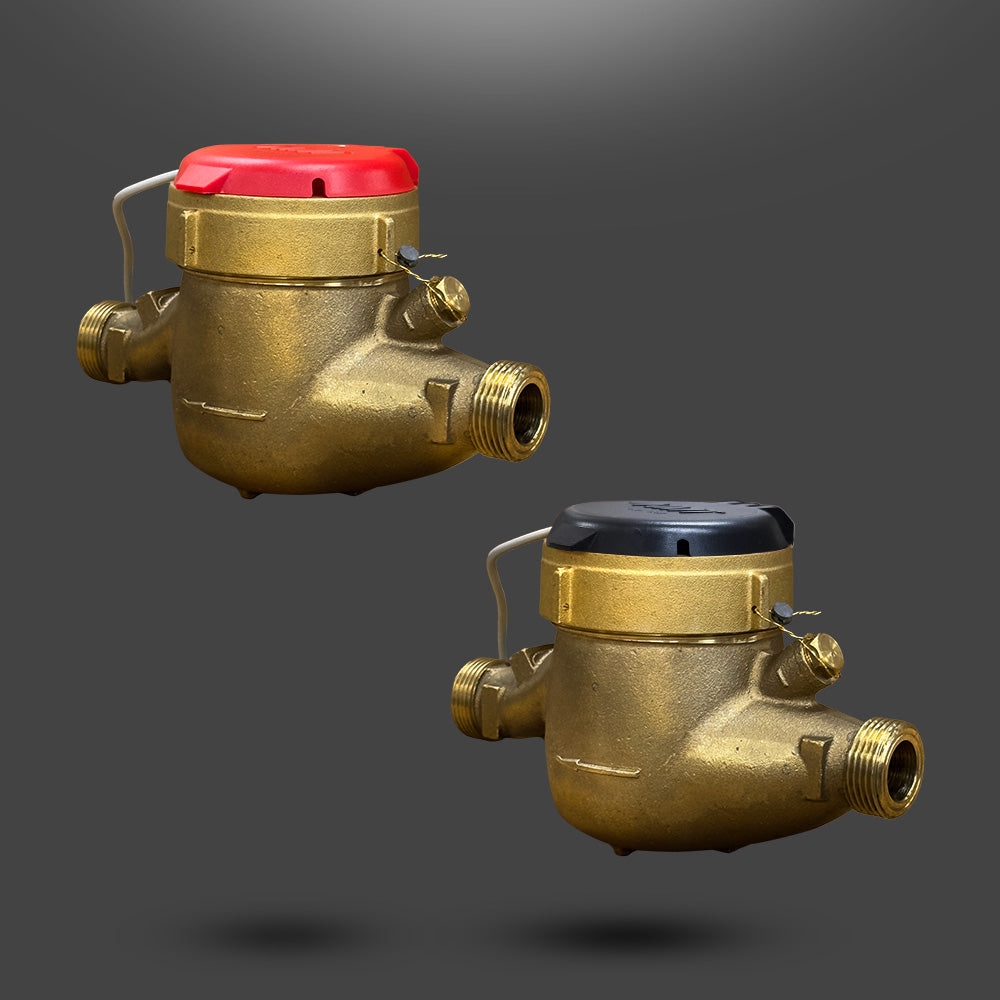

Norgas MultiMag Water Meter — 2" Hot, Pulse Output

The largest threaded MultiMag, for hot water — 160 GPM at up to 194°F.

• 2" (50 mm)
• Hot water, 194°F (90°C) max
• Flow 8–160 GPM, 80 GPM continuous
• Maximum pressure 150 PSI
• ECO brass body, no lead; thermoplastic internals
• Pulse output 1/1 gal or 1/10 gal, 6 mA @ 12 VDC
• AWWA C708, NSF61 and NSF372 approved
• Horizontal installation
• 14 lb

In the box

• Couplings
