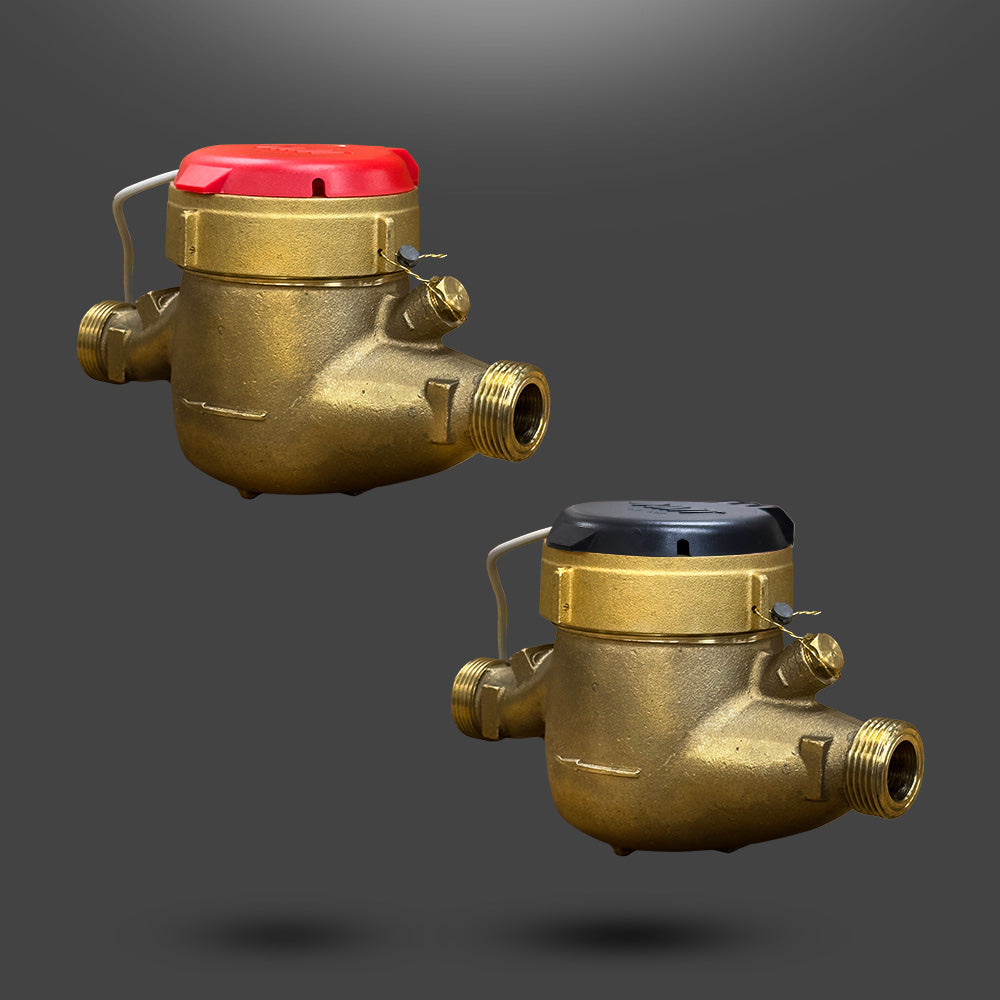

Norgas MultiMag Water Meter — 3/4" Hot, Pulse Output

The hot-water MultiMag, rated to 194°F, with the couplings in the box.

• 3/4" (19 mm)
• Hot water, 194°F (90°C) max
• Flow 2–30 GPM, 15 GPM continuous
• Maximum pressure 150 PSI
• ECO brass body, no lead; thermoplastic internals
• Pulse output 1/1 gal or 1/10 gal, 6 mA @ 12 VDC
• AWWA C708, NSF61 and NSF372 approved
• Horizontal installation
• 4 lb

In the box

• Couplings
