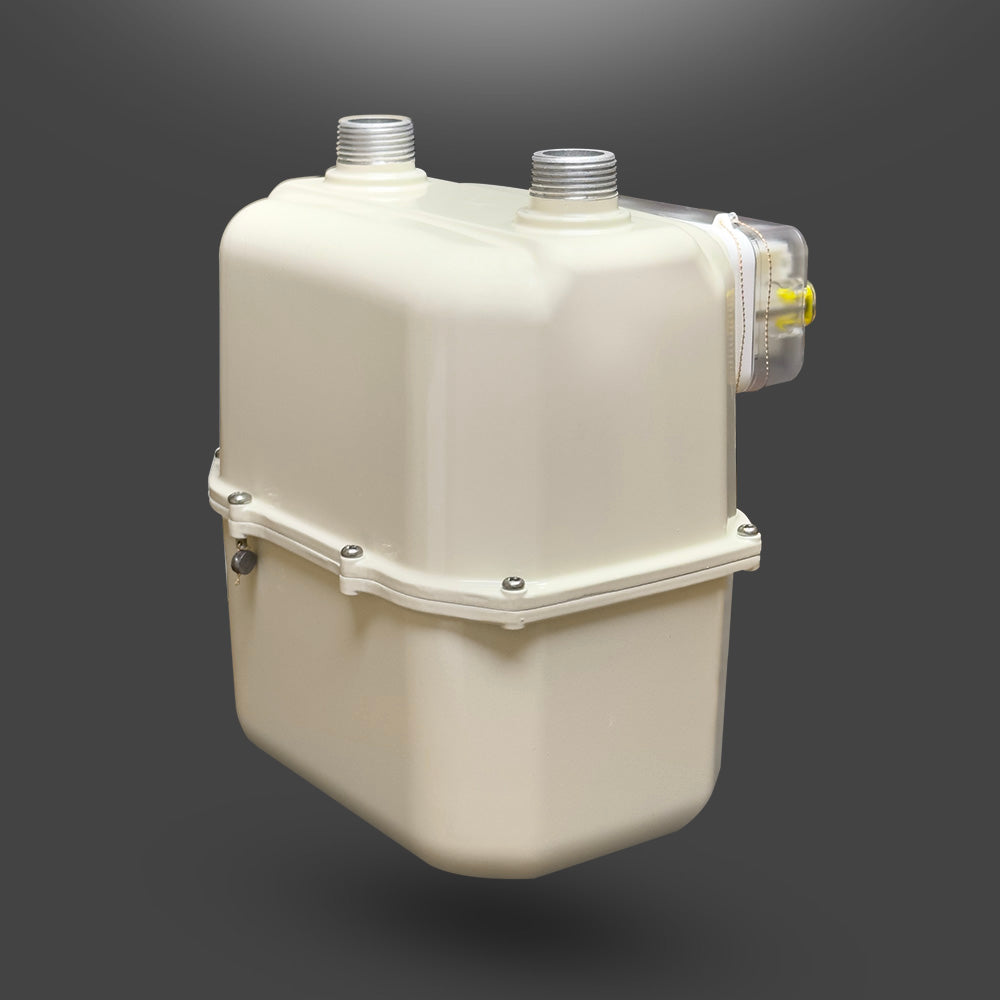

Norgas NG4 Gas Meter — 3/4" NPT, 211 CFH Max, Pulse Output

The workhorse of the Norgas gas line: an aluminium-bodied diaphragm meter sized for most submetered units, California and nationally approved, with the pulse output already on board.

• 3/4" NPT connection
• Measuring range 1.4–211 ft³/h
• Maximum operating pressure 7.25 PSI
• Natural gas and LPG
• Operating temperature −4°F to +122°F
• Pulse transmitter: LF-system, 1 ft³/pulse, 12 VDC and 10 mA max
• Cyclic volume 0.42 ft³
• Aluminium body, sealed register
• California approved (CTEP), National approved (NTEP)
• 4.2 lb
